The document shown on this page is the October 1955 edition of "RCA Broadcast News."  It was recently found stashed away in a file cabinet at the KDFW-TV transmitter site, located near the base of the original Cedar Hill TV tower.  RCA was apparently very proud of the design and fabrication of this tower, because apparently nobody had ever attempted to make a "candelabra" style tower before, to accommodate two or more television stations' antennas at the same height above ground.  Even today, it is rather unusual to see such a large platform at the top of a very tall tower.



Click to enlarge, of course:

Click to enlarge

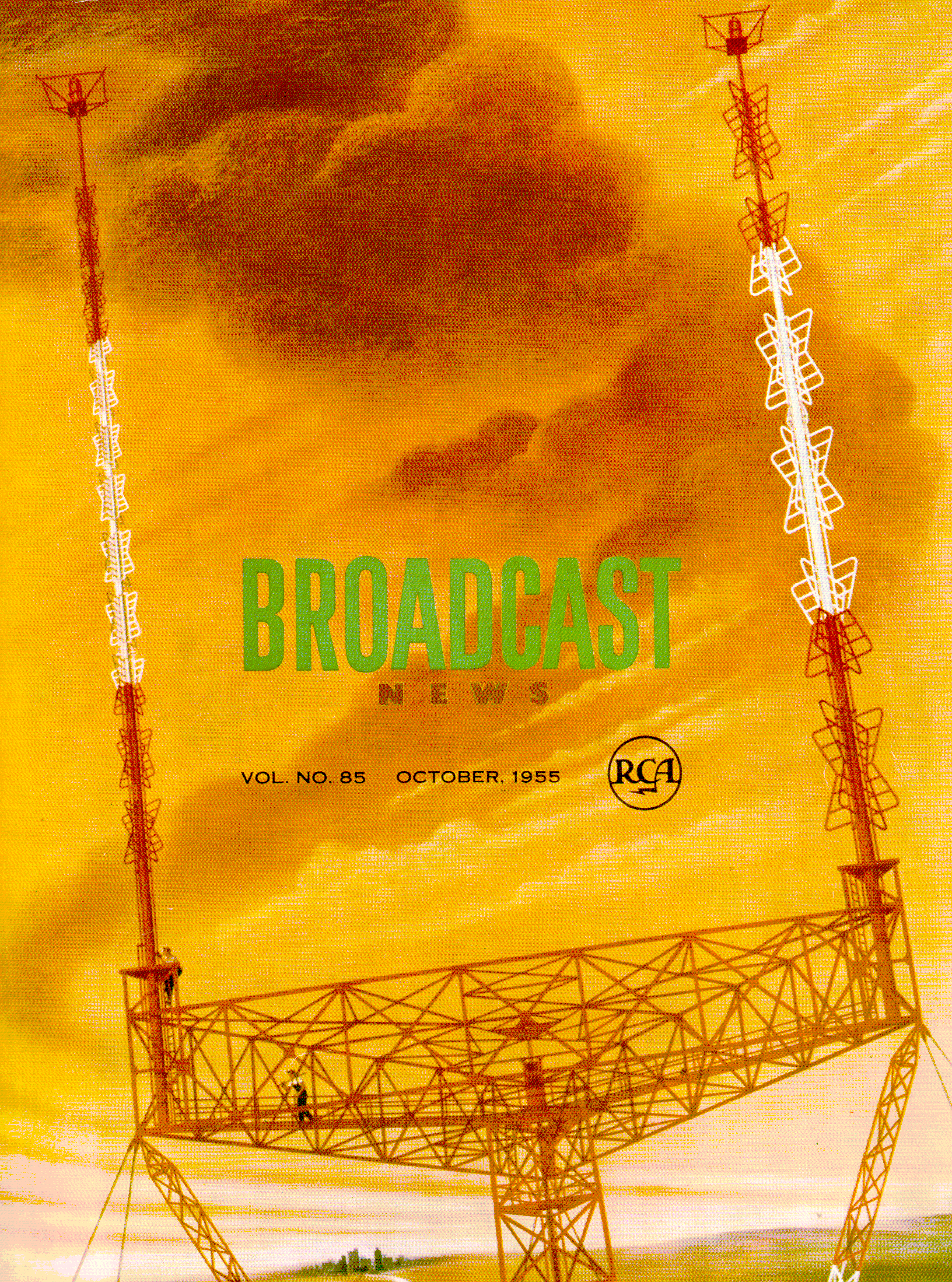

Front cover.

Click to enlarge

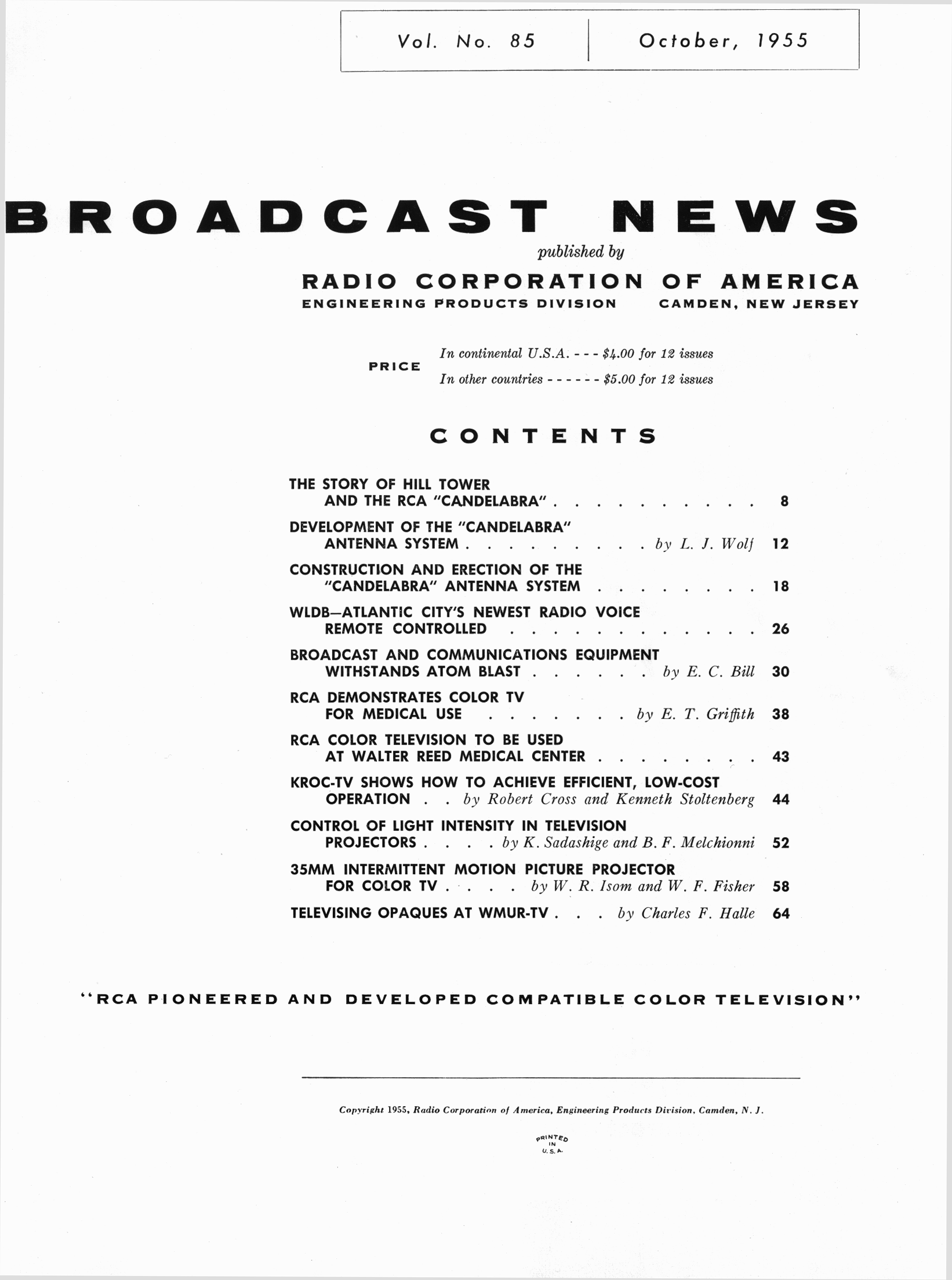

Table of contents.

Click to enlarge

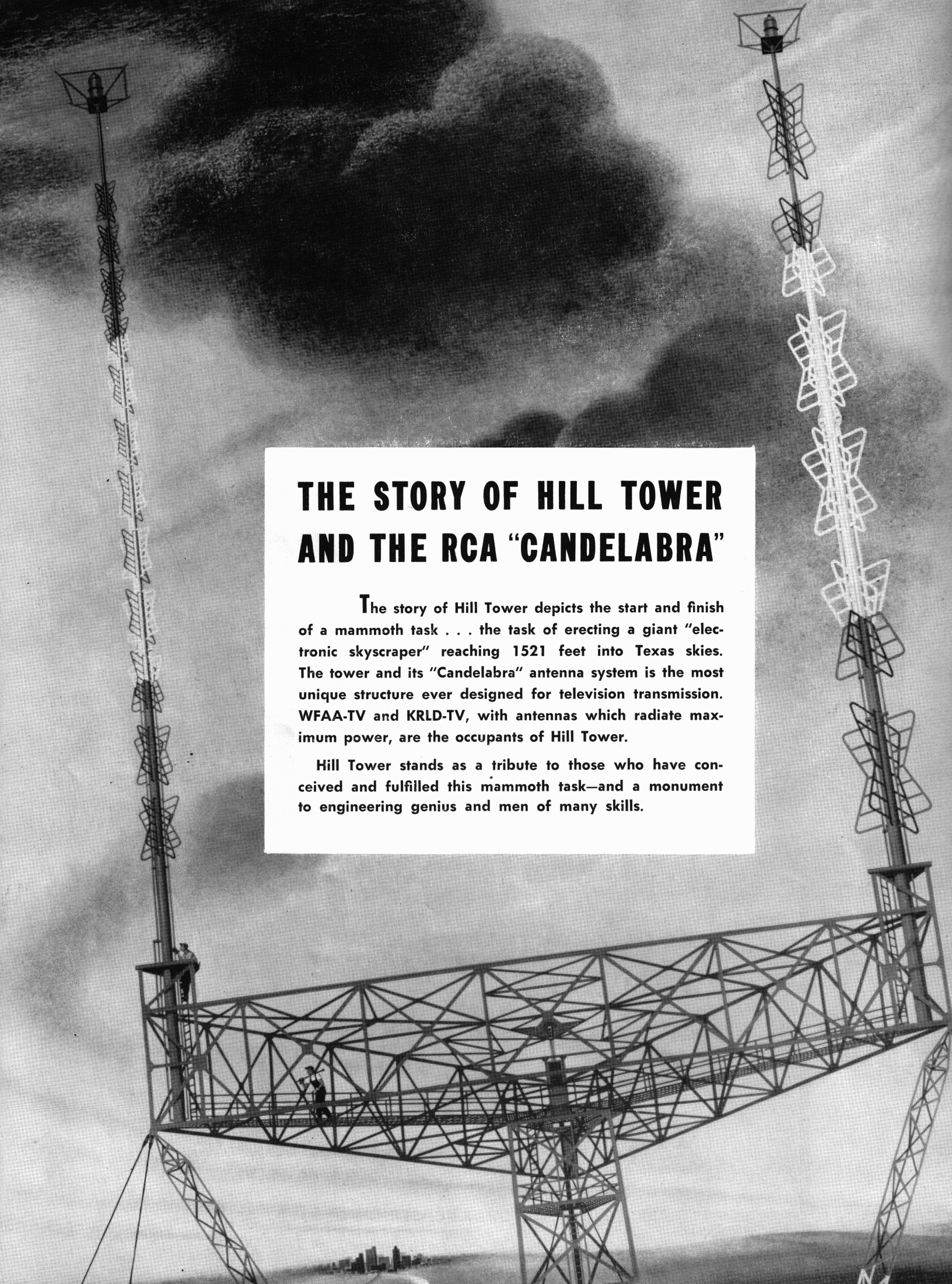

The story of Hill Tower and the RCA "Candelabra"

Click to enlarge

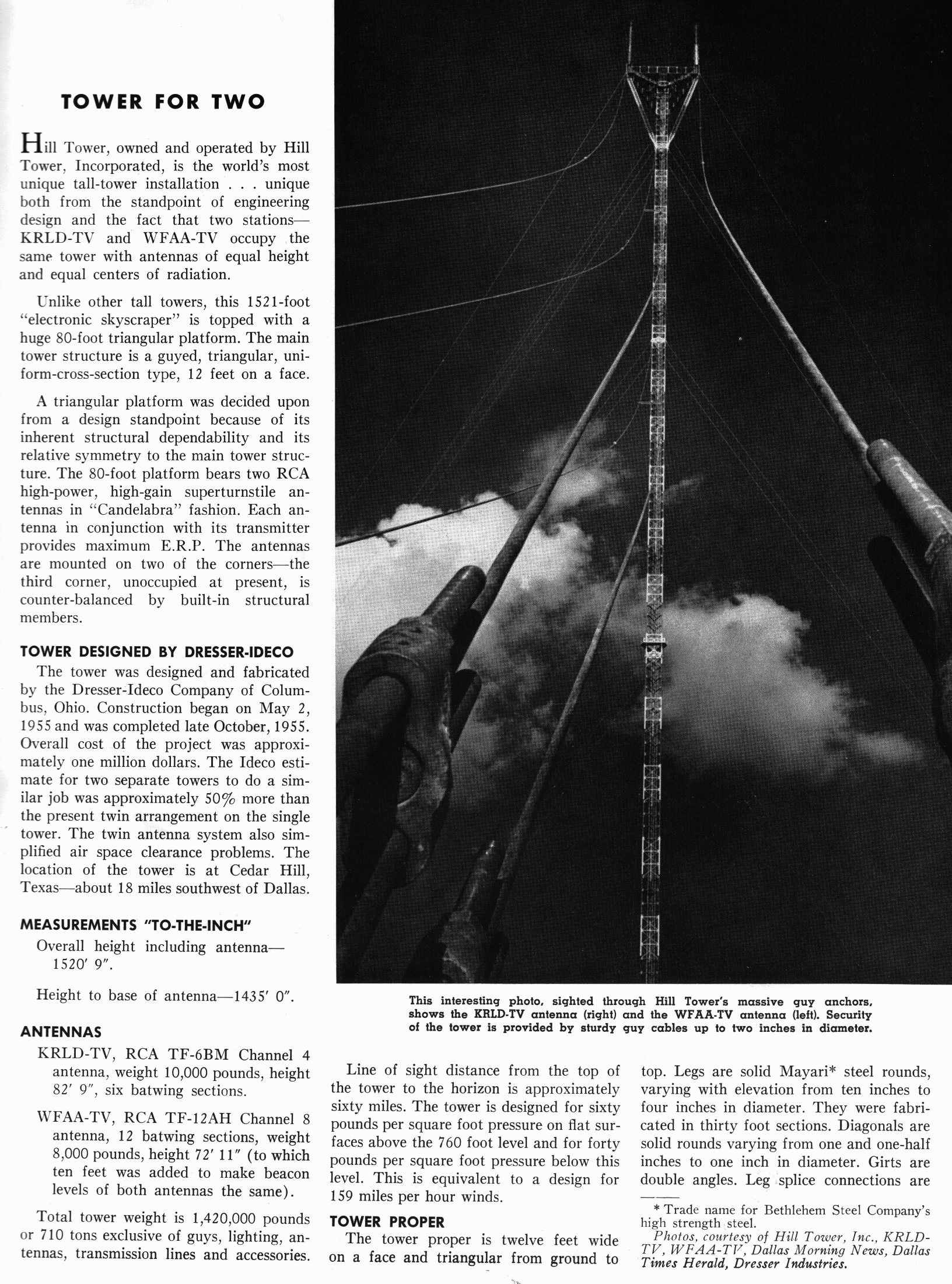

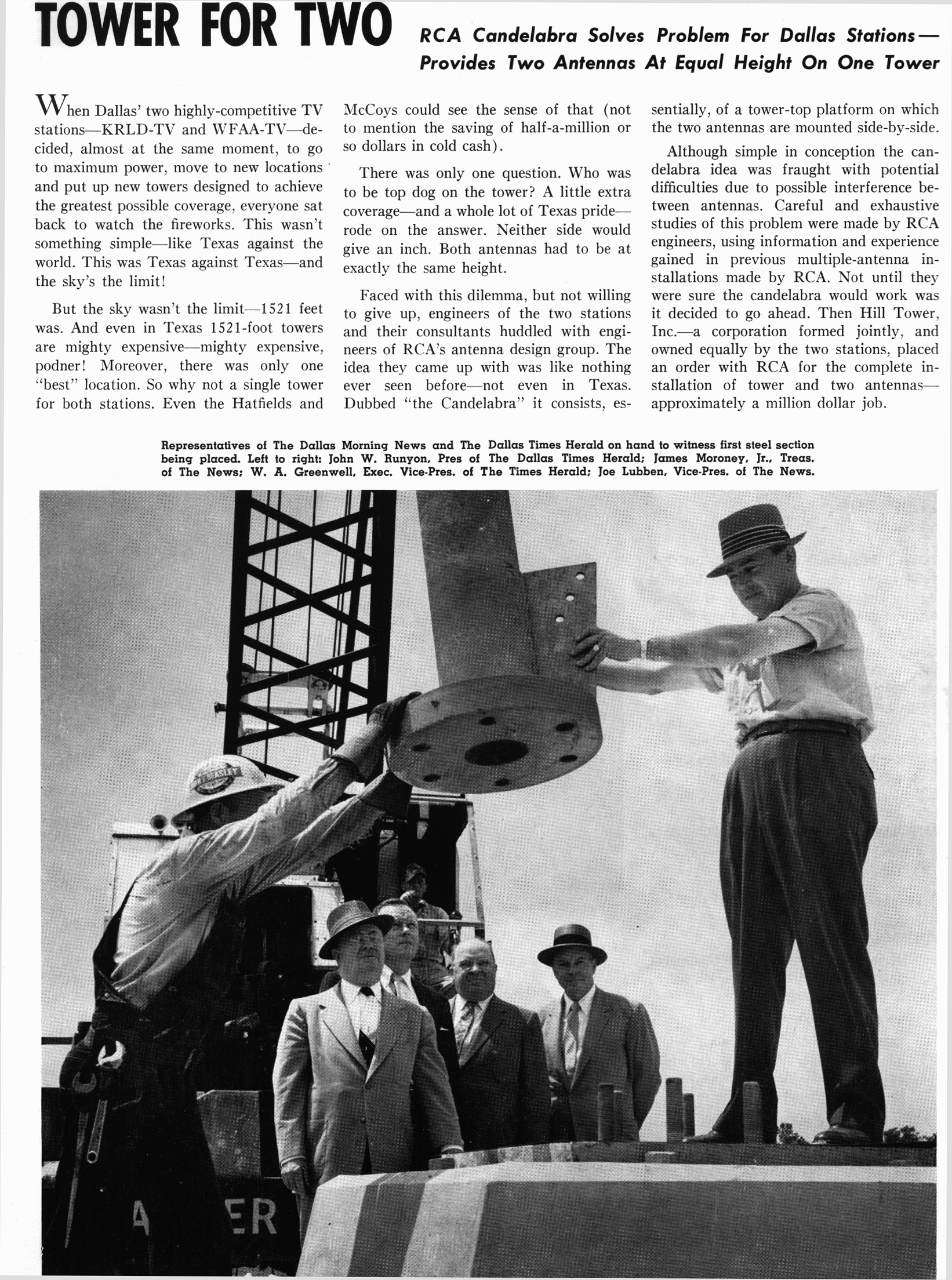

Tower for Two

I wonder... is the man on the far right (who is obviously relieved to see there are six bolts waiting for the six holes in the flange) the same as this man, who was featured on this page?

Click to enlarge

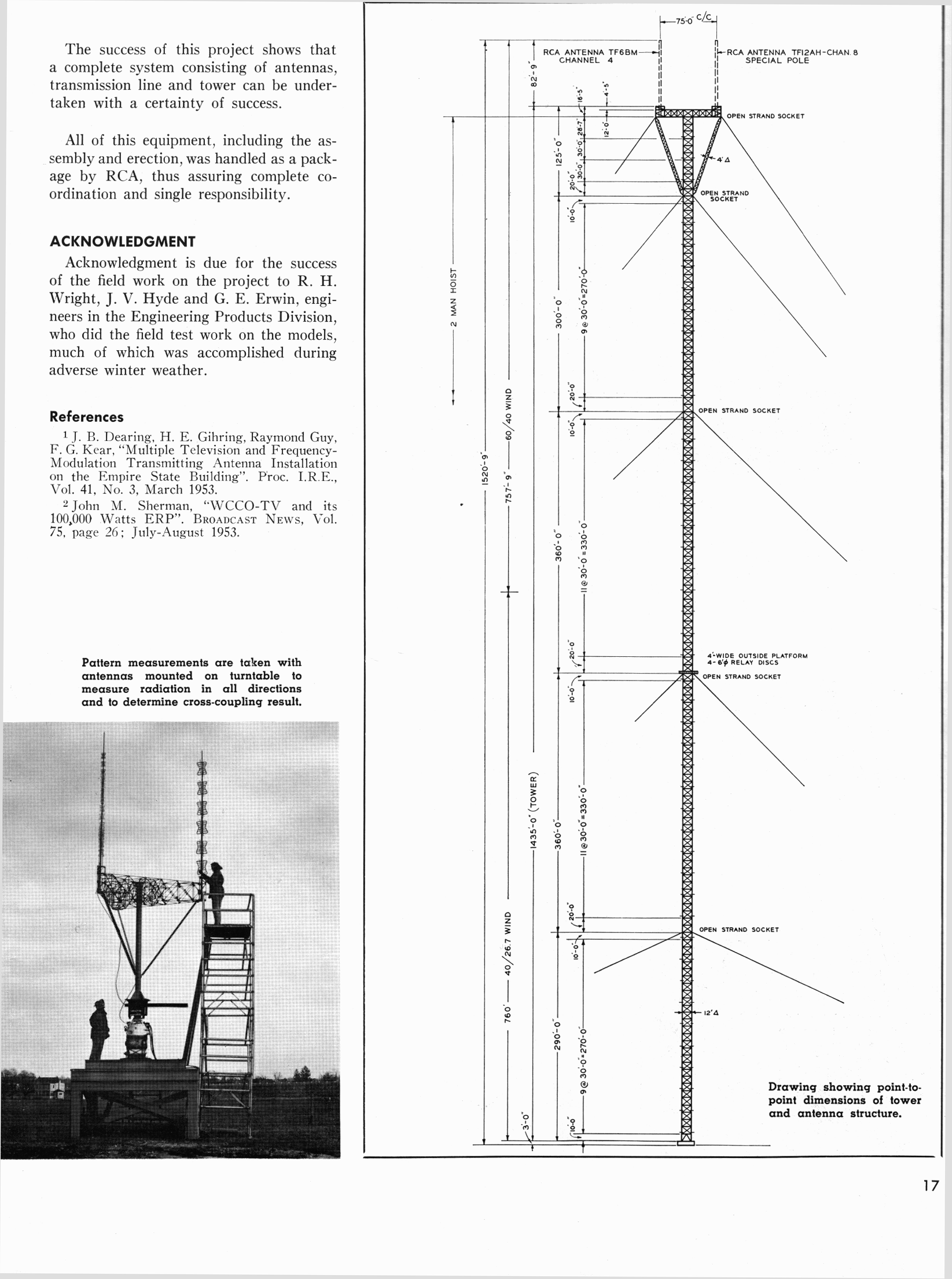

Overall height above ground:  1520 feet, 9 inches.

Click to enlarge

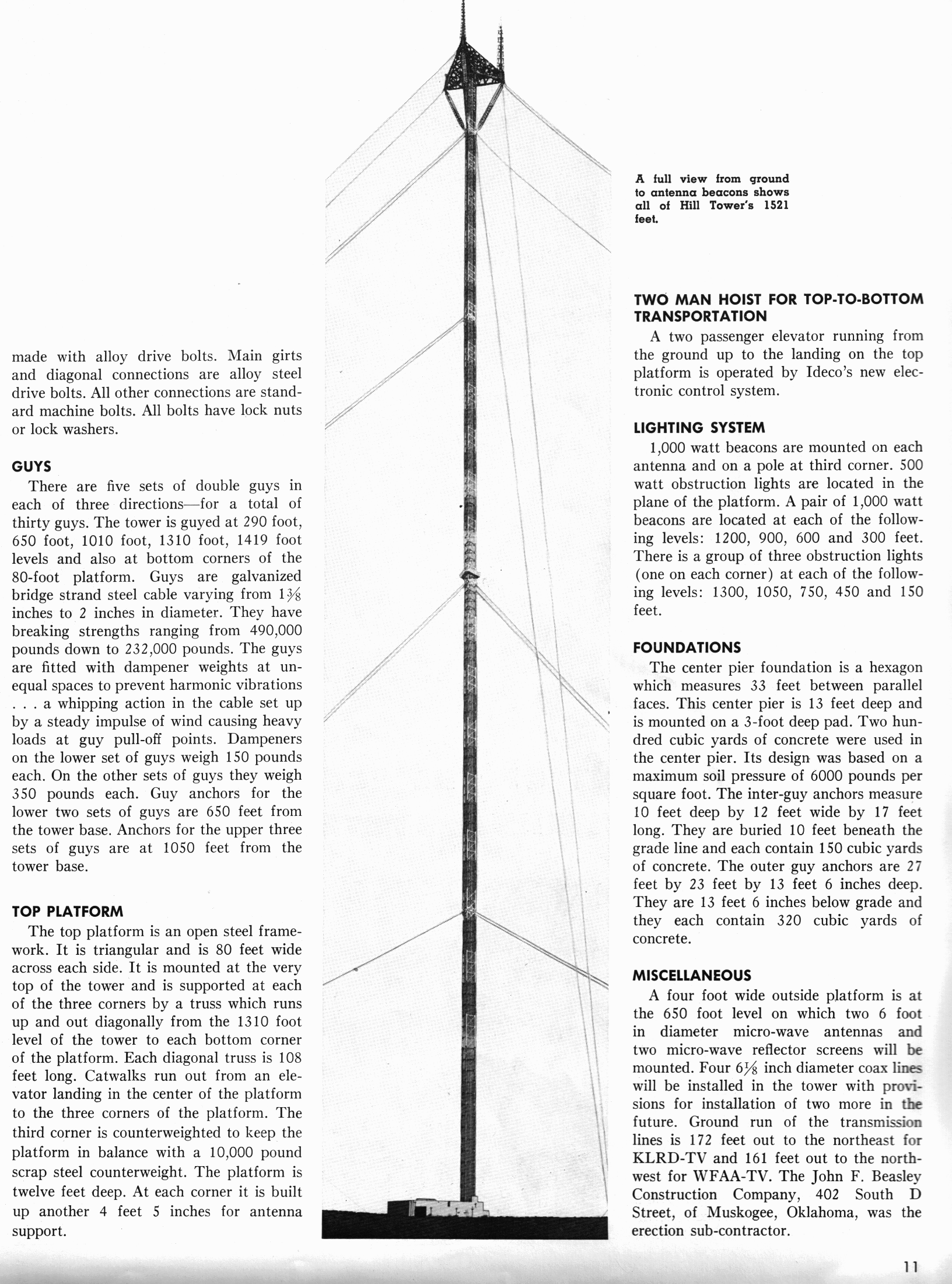

More about the guys, the beacons, the foundation, etc.

Click to enlarge

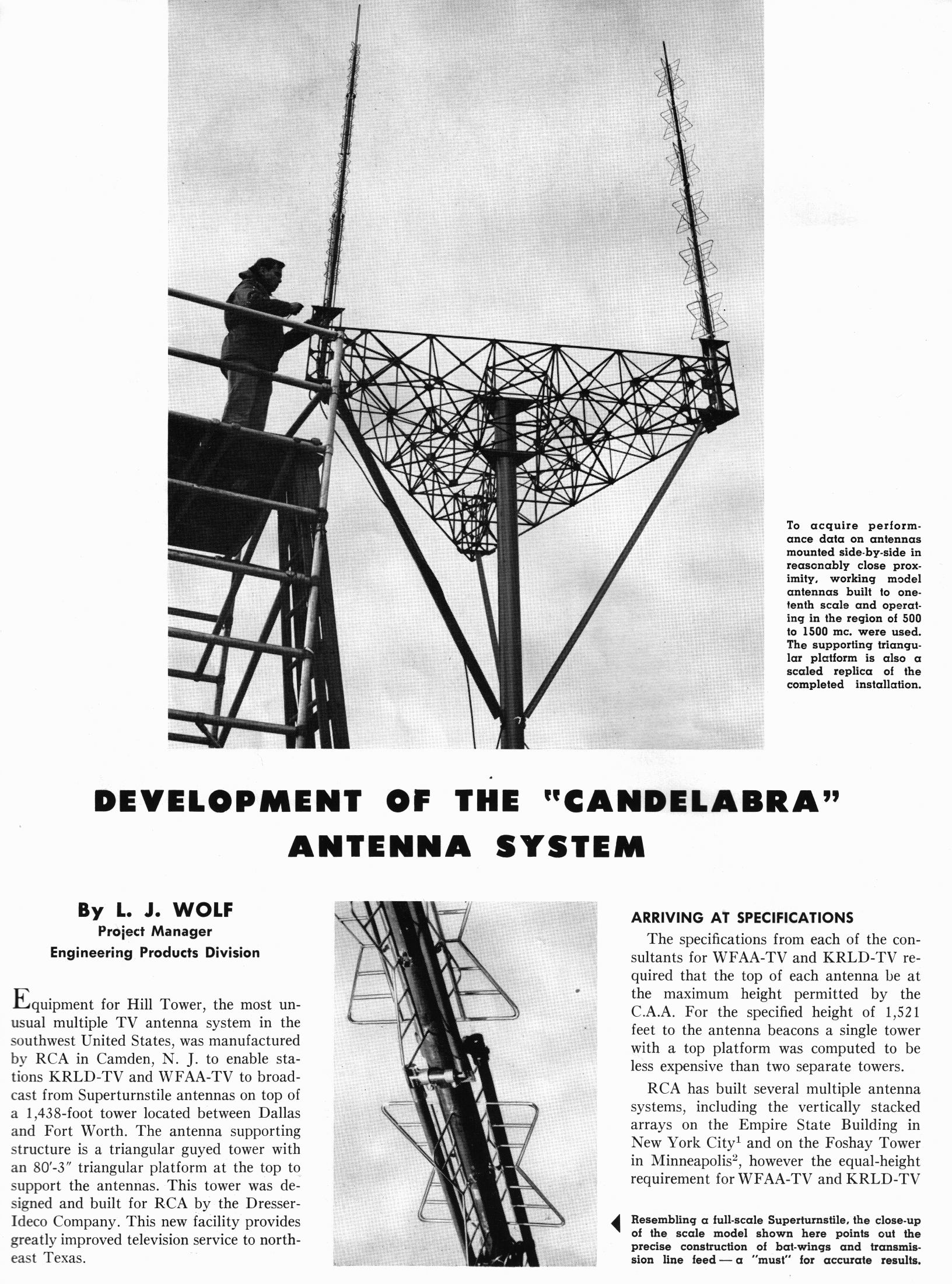

Development of the "Candelabra" antenna system.

Click to enlarge

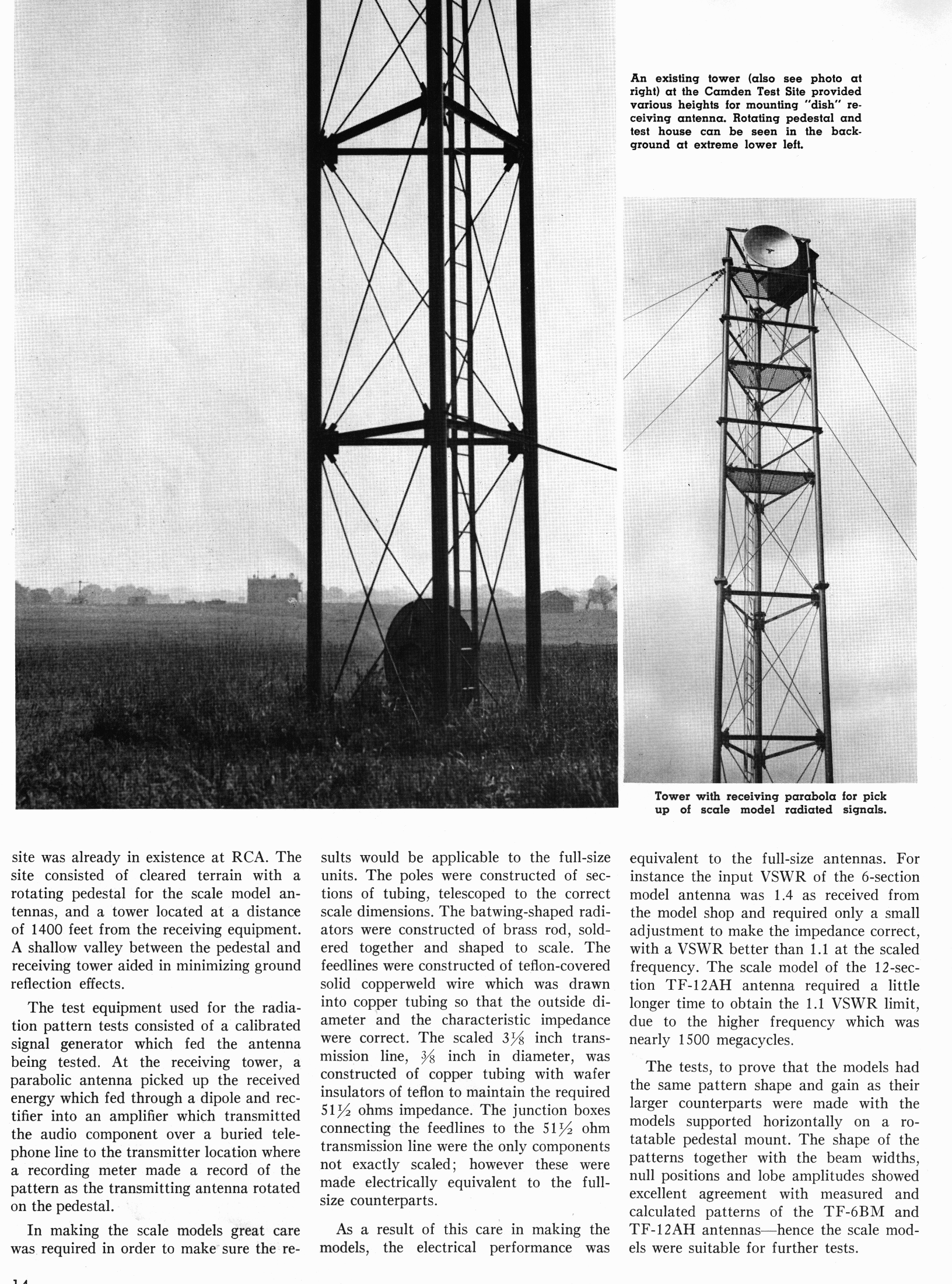

RCA built a scale model of the Cedar Hill tower (I wonder where it is now!) and in the process, they made their own "miniature" coax cable -- about what we would call RG-174 today.

Click to enlarge

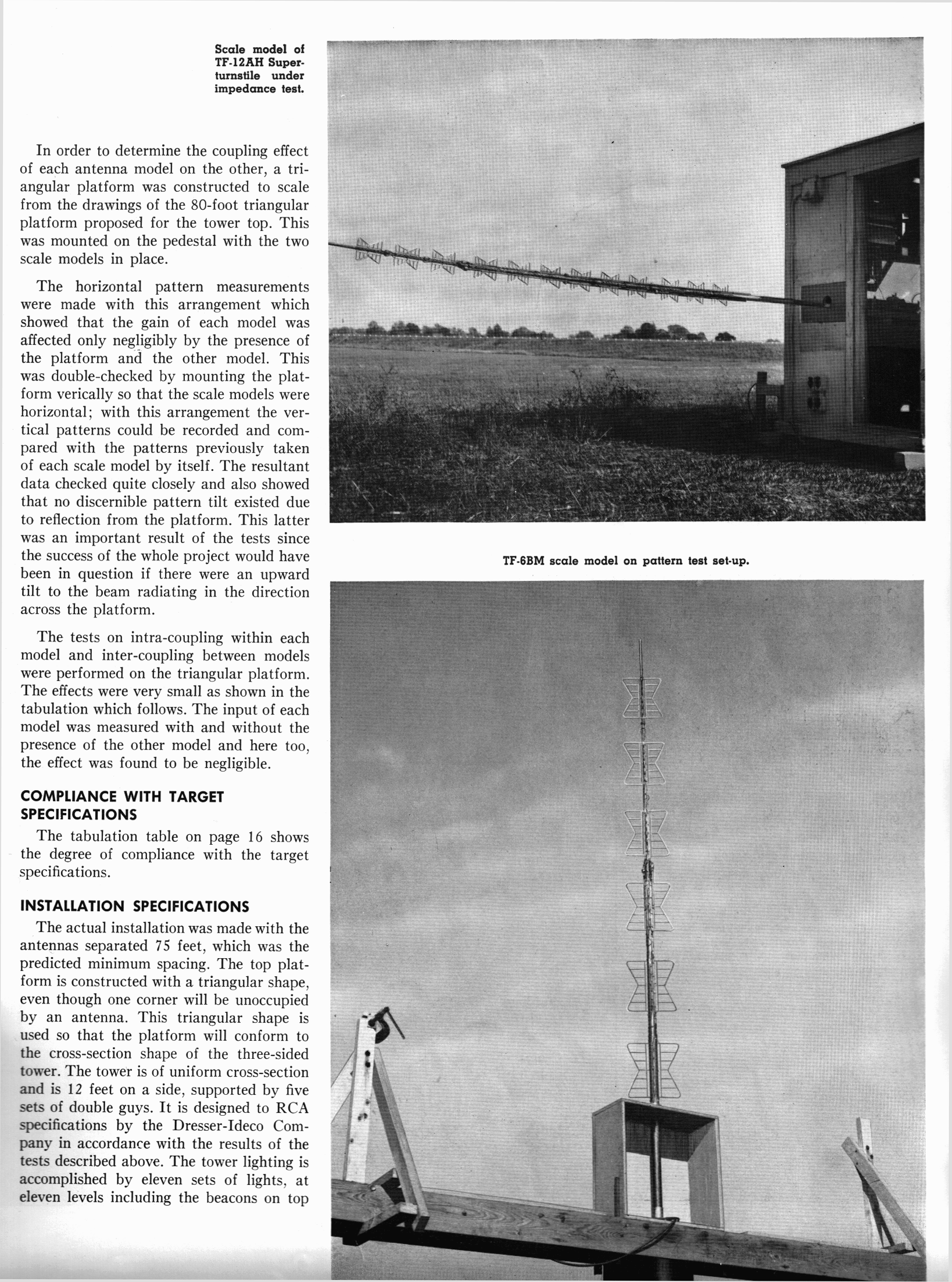

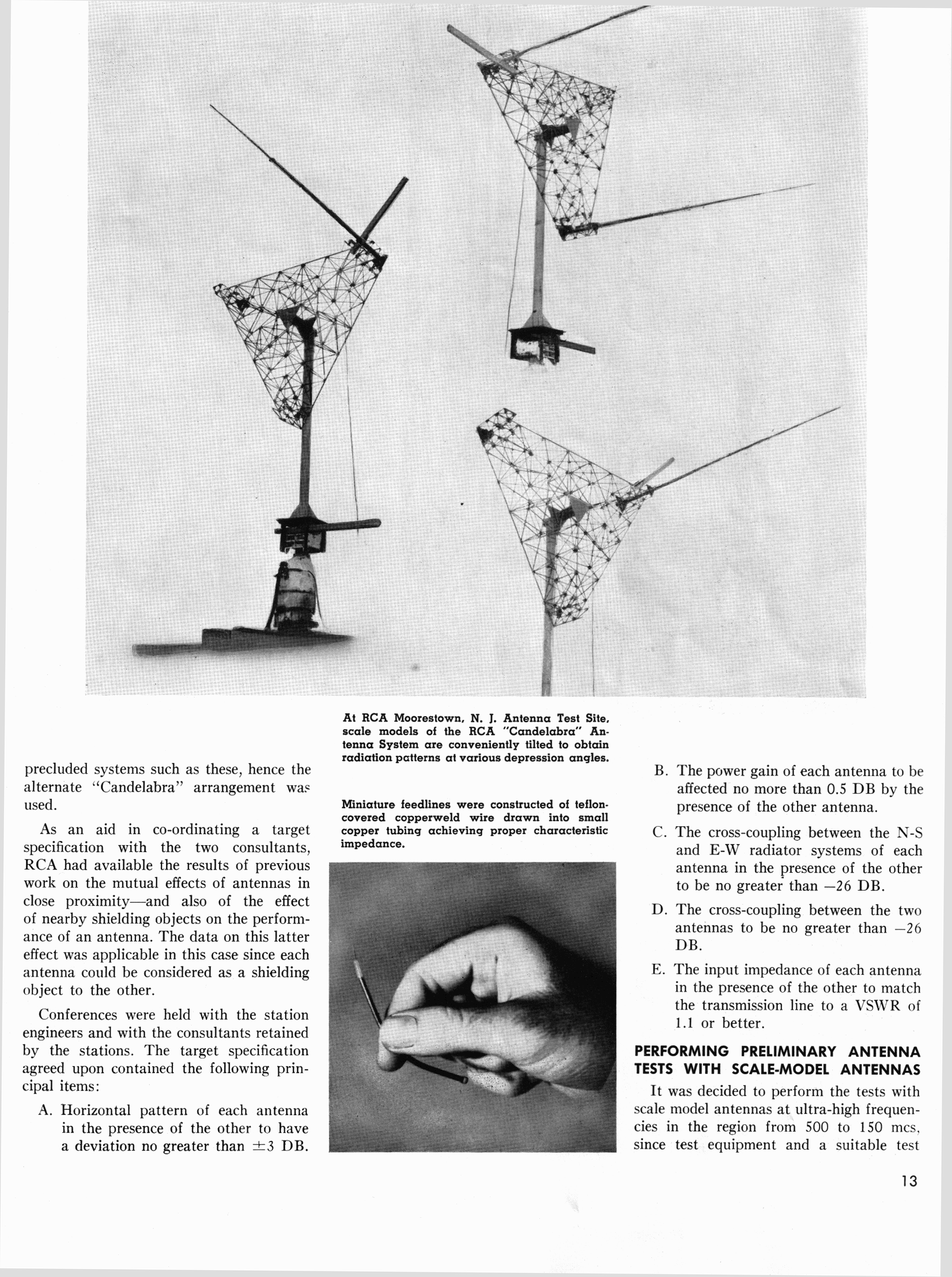

The model was built on a scale of about 1:10, using antennas at 500 and 1500 MHz.

Click to enlarge

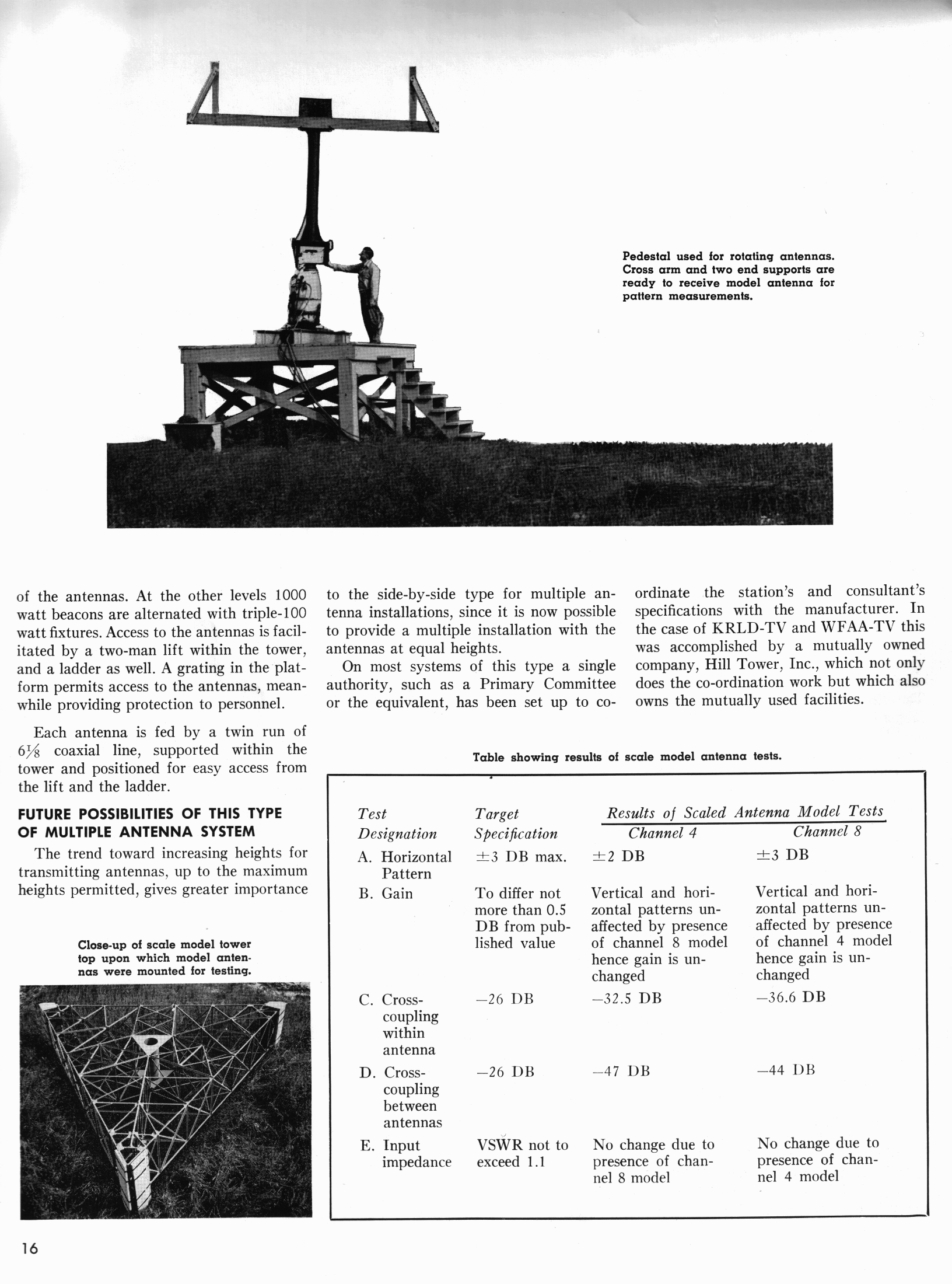

This was done to predict the isolation between the low-band and high-band transmitters.

Click to enlarge
Results of the isolation tests were quite good.

Updated 3/24/2009:
I was informed today by a very reliable source that the scale model of the Cedar Hill tower is still at the Cedar Hill site.  Apparently the preliminary testing with the scaled-down antennas was done in Cedar Hill, and not at an RCA facility on the east coast, as I had suspected earlier.  If I pull a few strings (and push a few buttons), perhaps I can take some pictures of it.

Click to enlarge
Stem-to-stern dimensions of the tower.

Click to enlarge

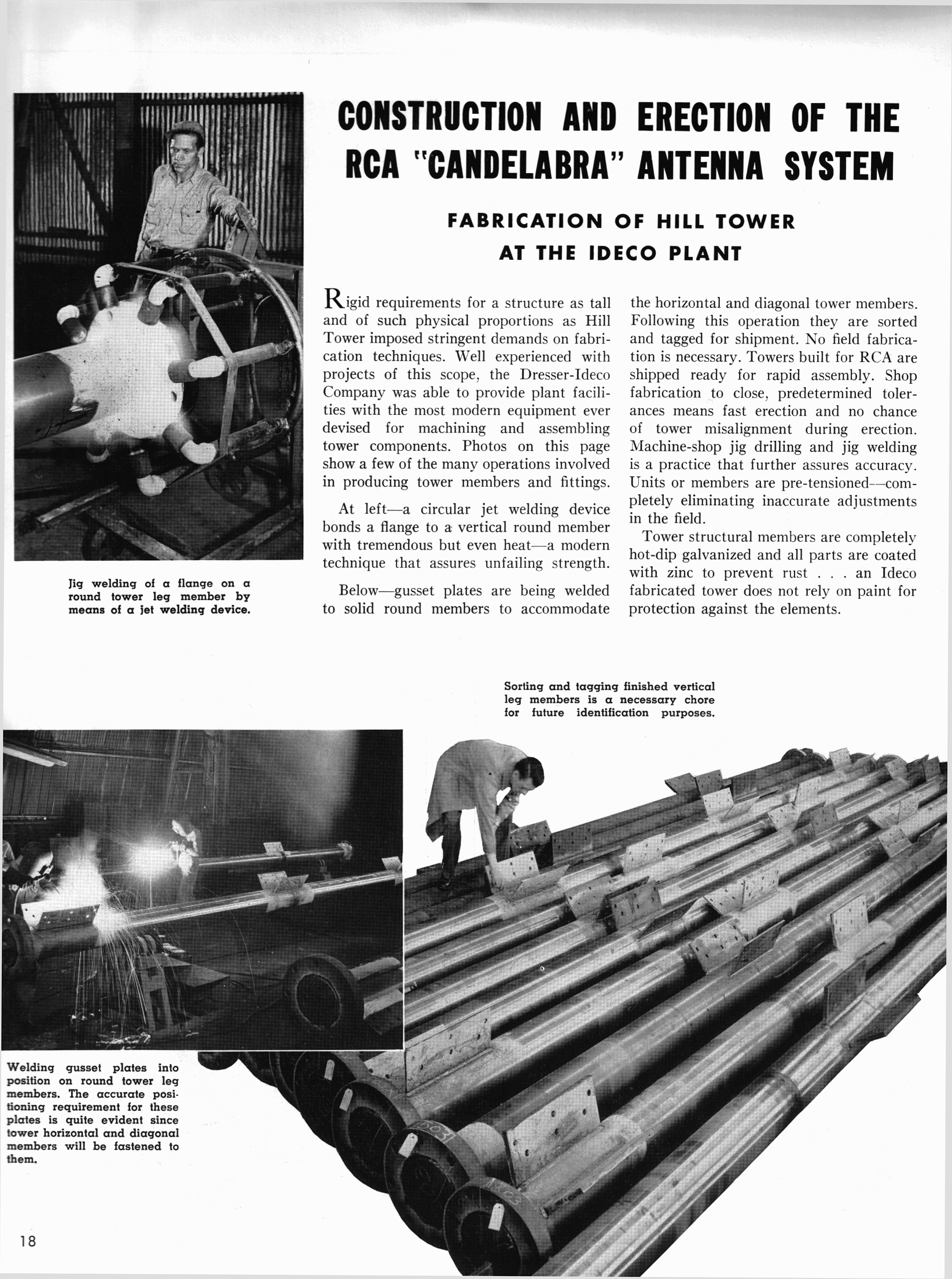

Construction and erection of the RCA "Candelabra" antenna system:  Fabrication of Hill Tower at the Ideco plant.

Click to enlarge

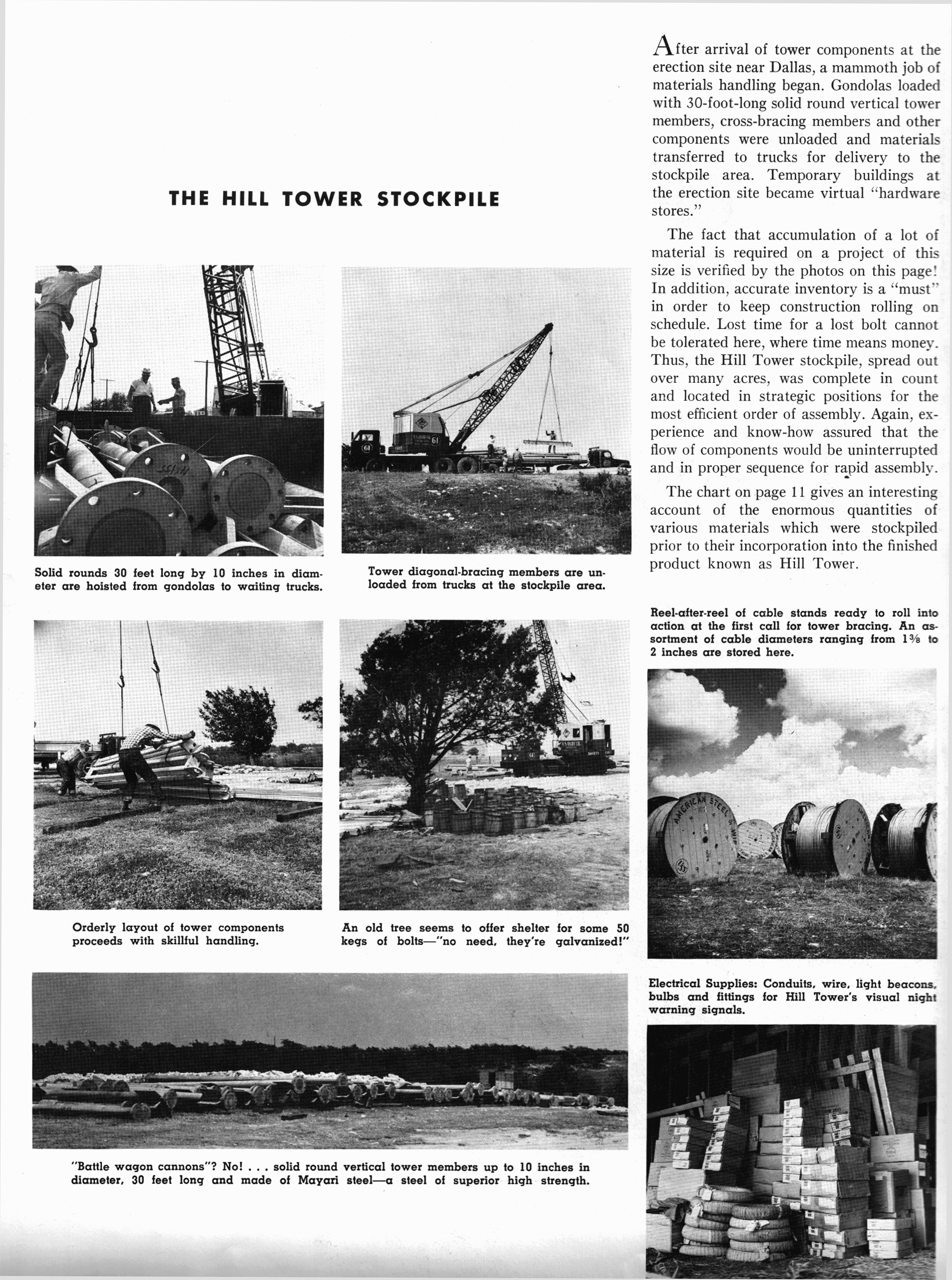

The Hill Tower stockpile.

Click to enlarge

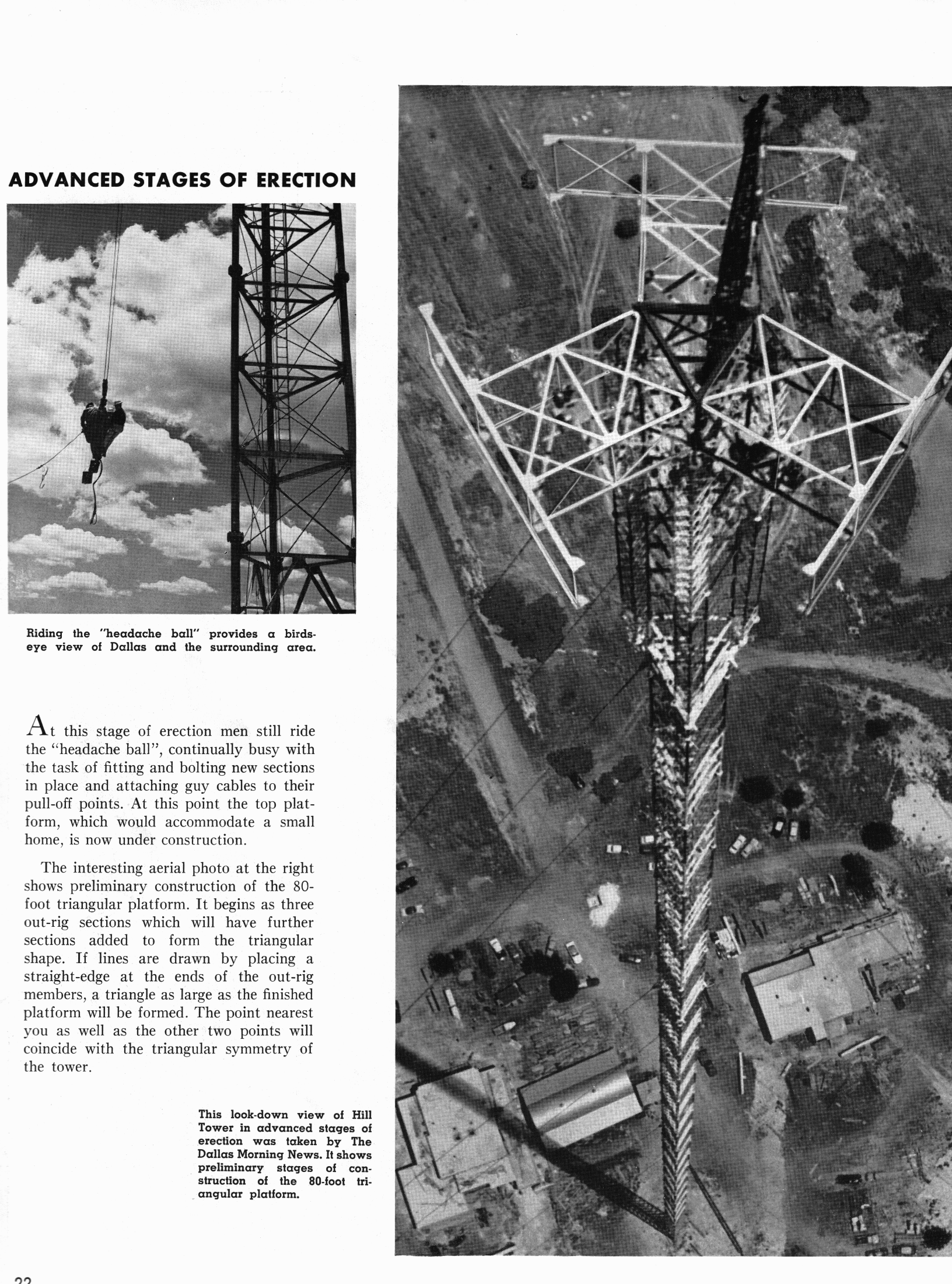

Advanced stages of erection -- with a really impressive aerial photo of the incomplete candelabra.

Click to enlarge

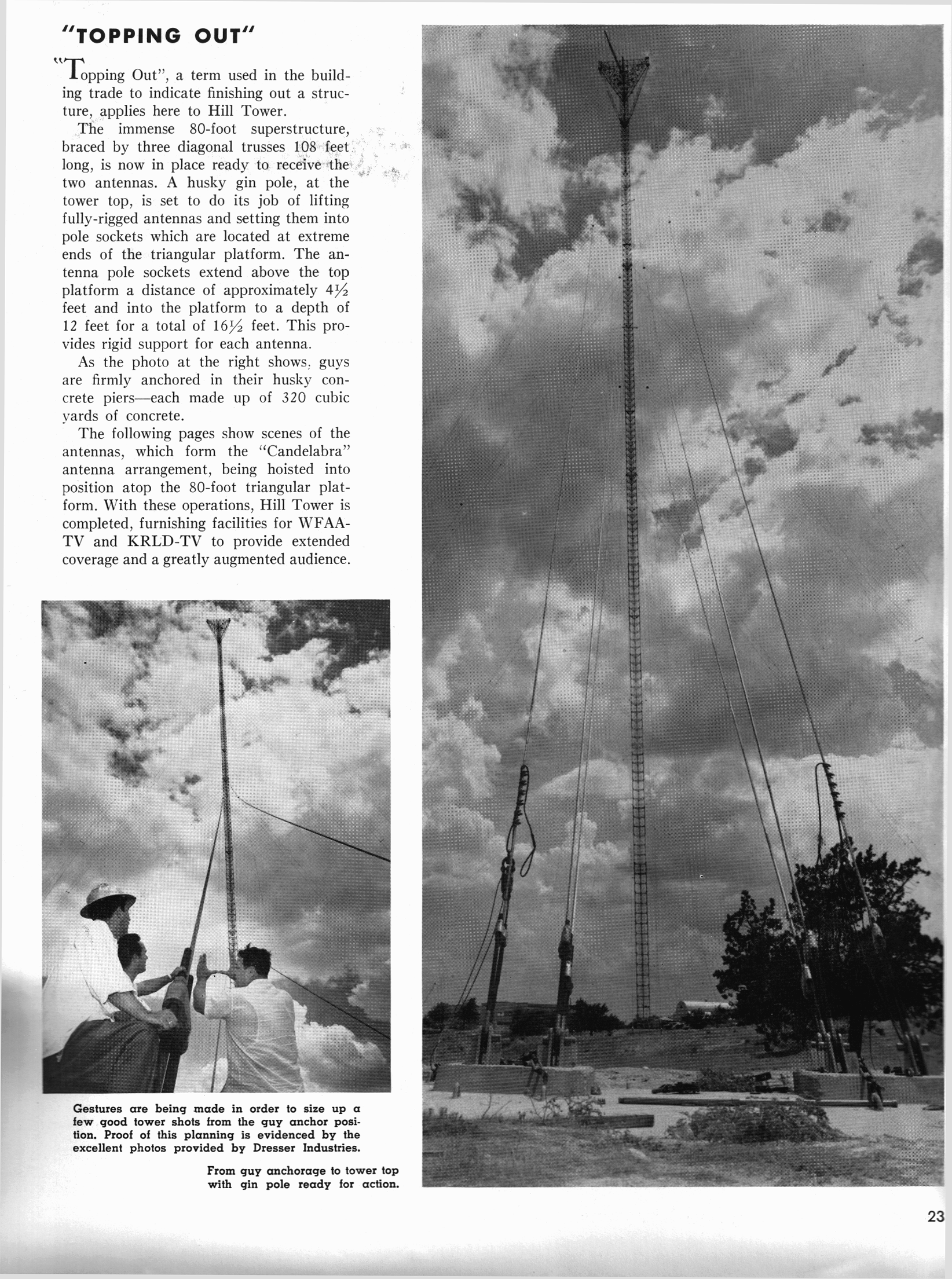

Topping out.

Click to enlarge

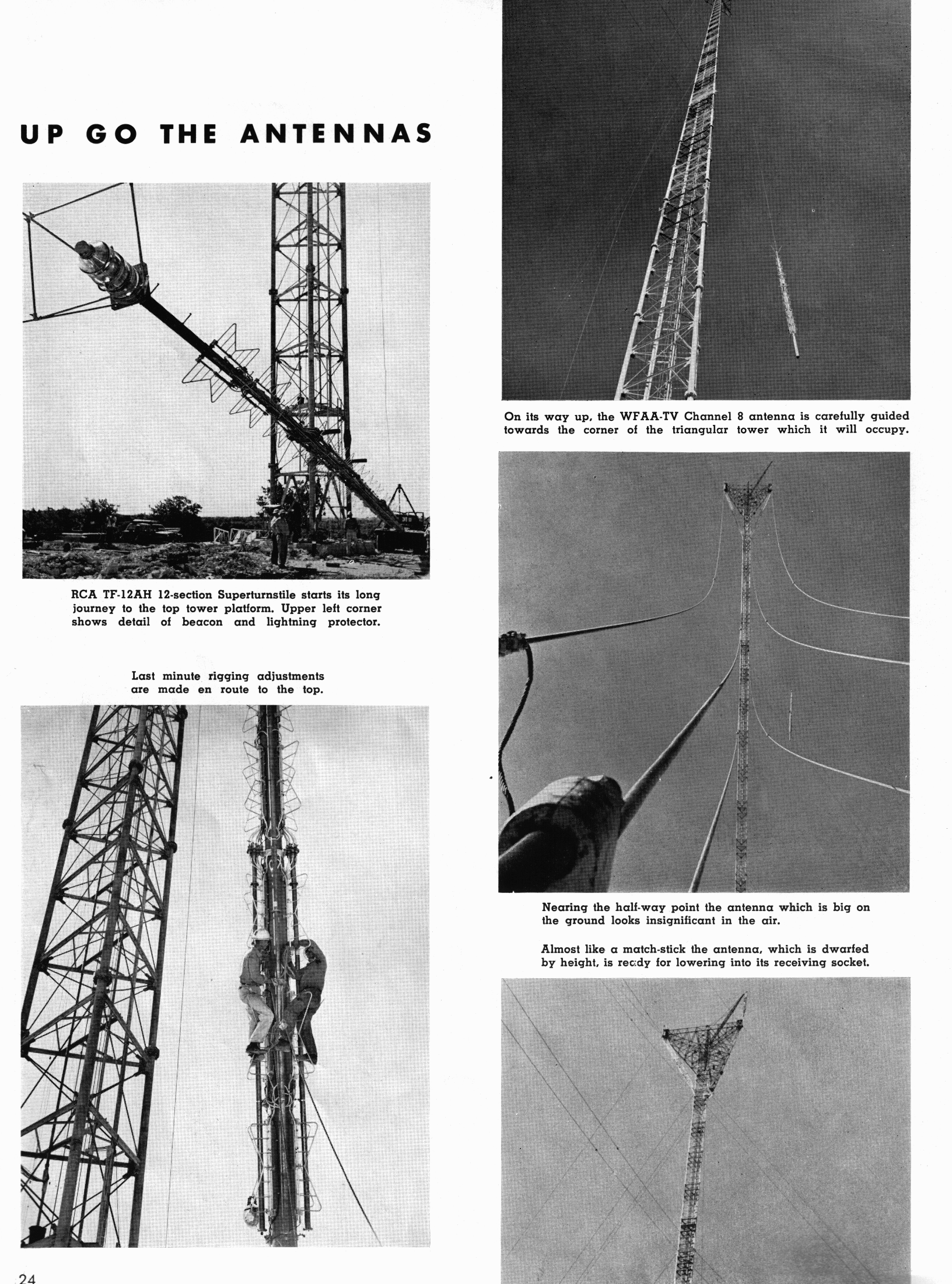

Up go the antennas.

Click to enlarge

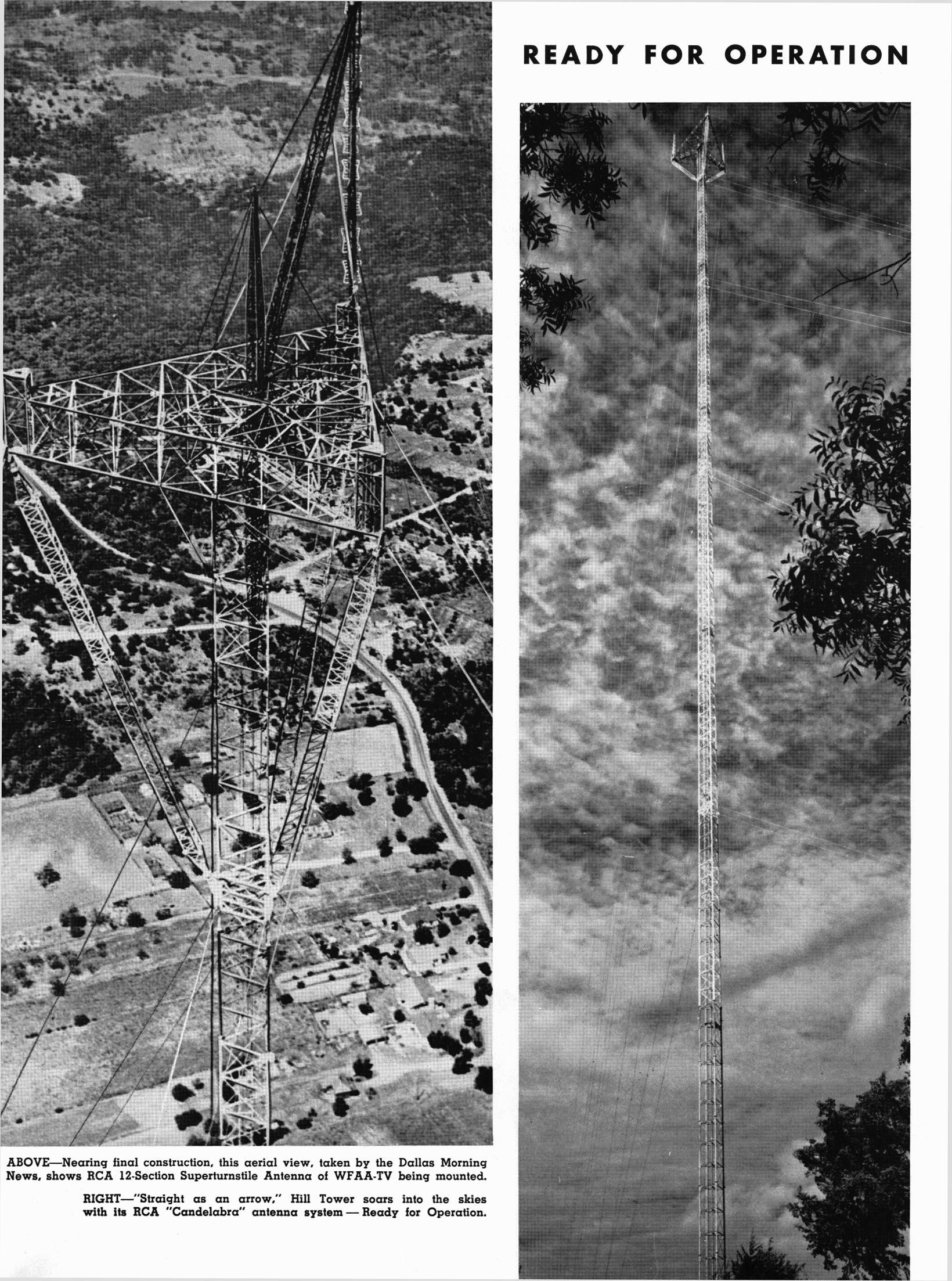

Ready for operation.  Another good aerial photo.

Click to enlarge

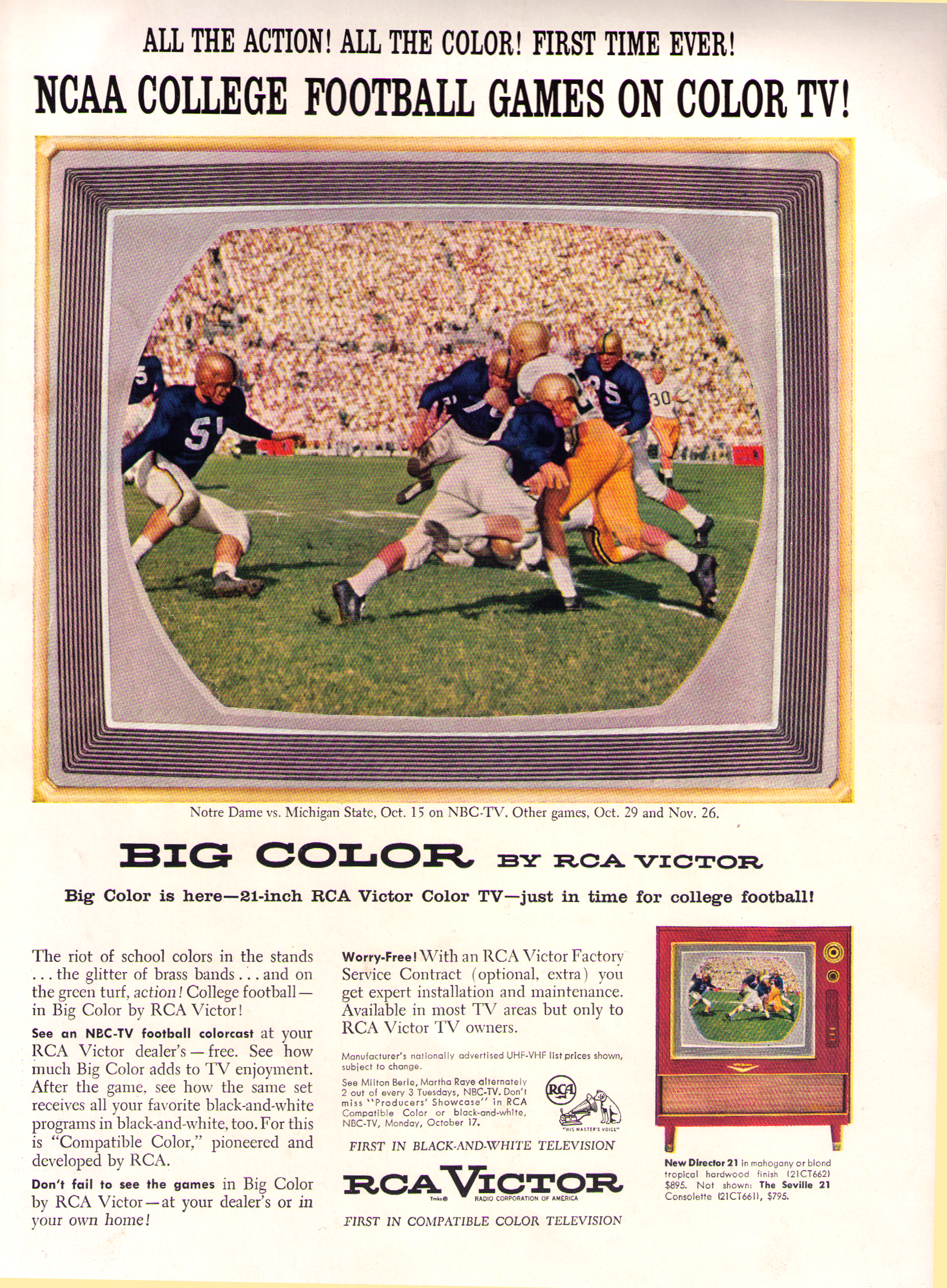

Back cover.  An ad for an RCA Victor color TV -- pretty impressive for 1955.  Probably a VHF-only receiver, since the UHF band wasn't catching on too quickly.*


Simulated reception.

Incidentally, this TV set carried a price tag of $895 back then, which would be the equivalent of $7,060 today.
